Kristinehamn Suspended
Alexander Cederroth

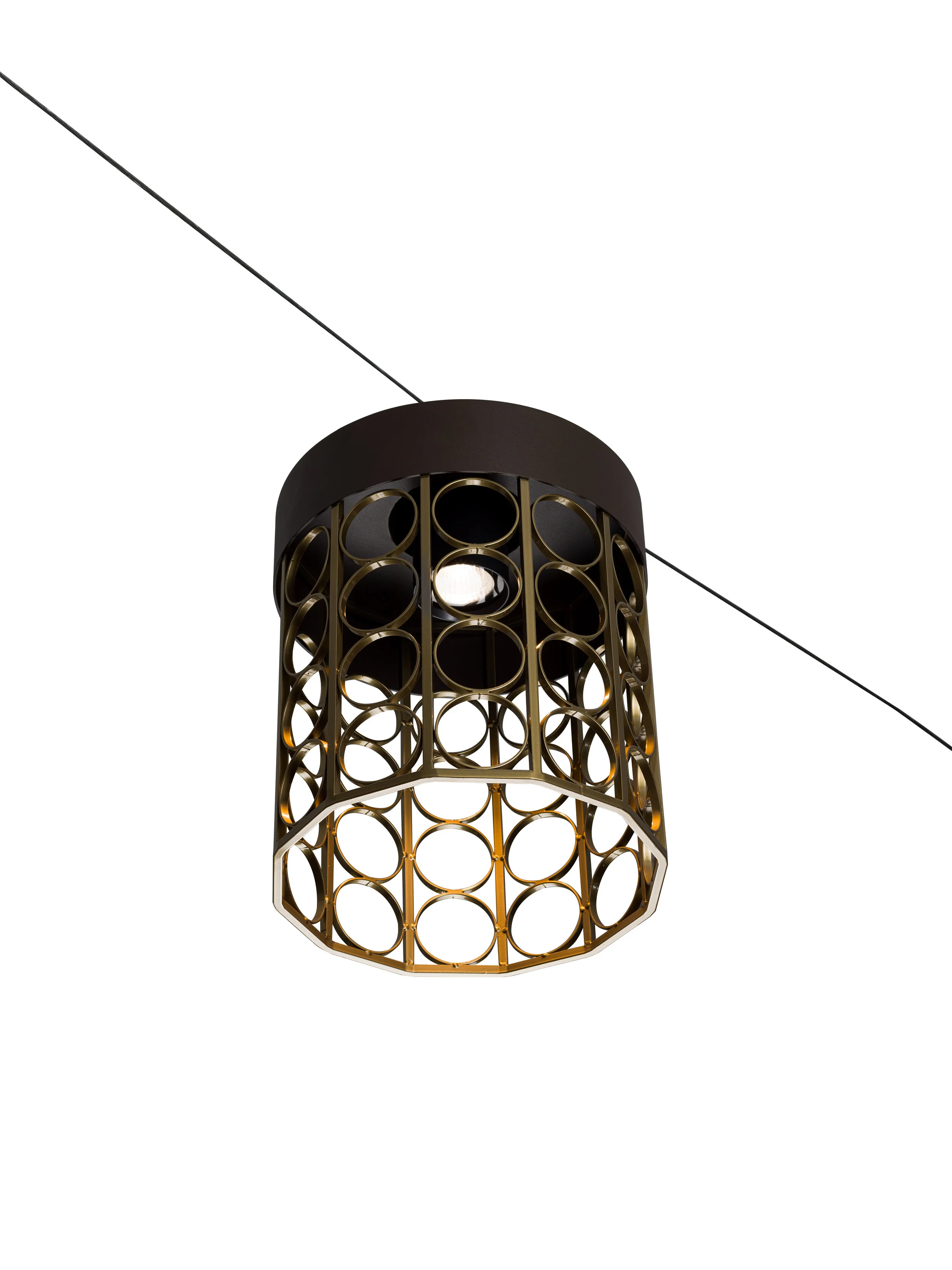

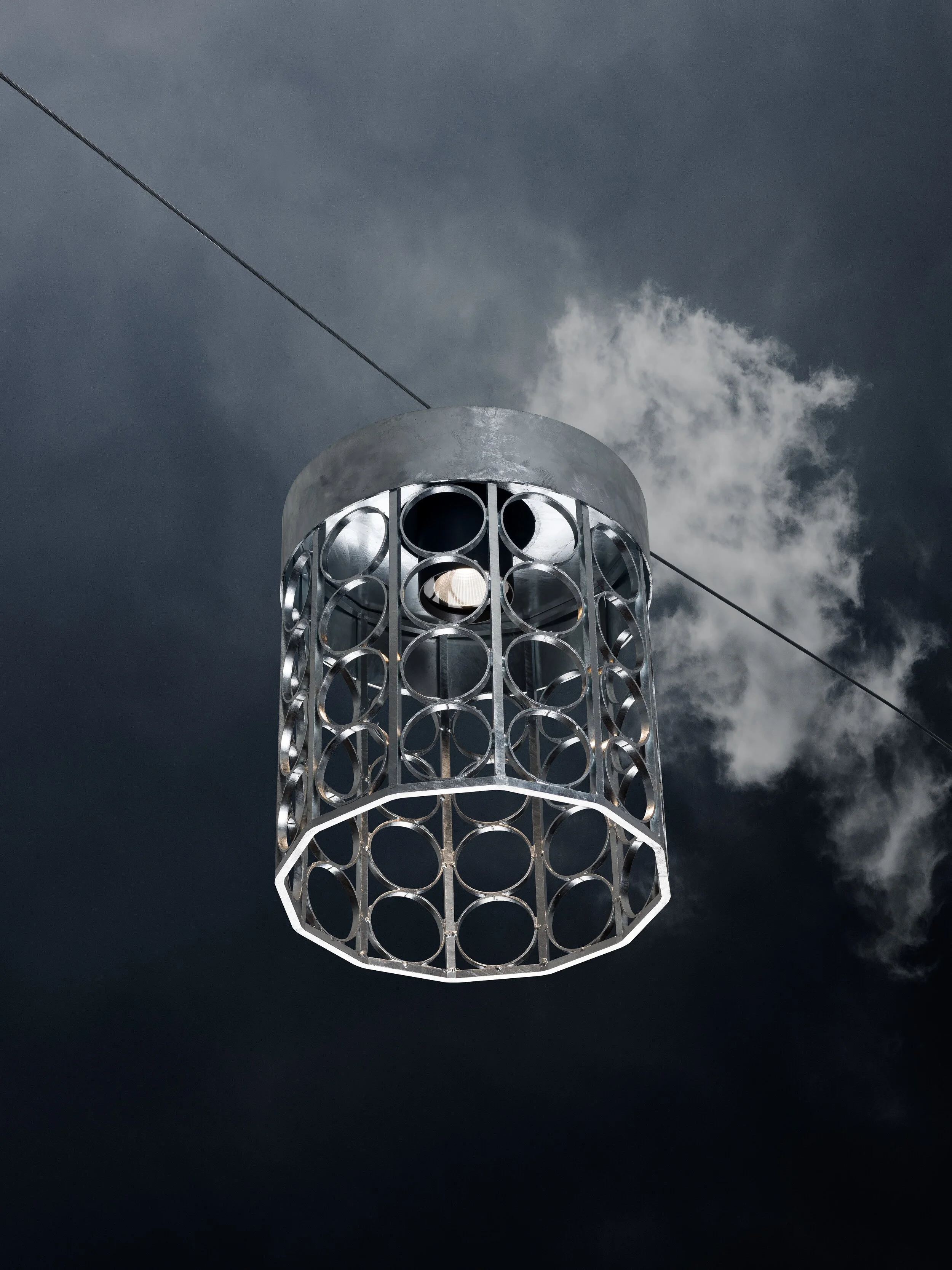

Originally developed for the new city park of Kristinehamn, Sweden, the catenary version of the luminaire has a direct lightdistribution with various beam angles in order to find the best suited option for the project.
A minimum of light is reflected inside the luminaire housing, in order not to create light pollution, and at the same time enhancing the actual shape of the luminaire and minimizing glare.
Manufactured in either corten, galvanized or painted appearance, the Kristinehamn family consists of catenary- and poletop luminaires.
Kristinehamn is is manufactured in one standard size, but can be manufactured in customized colours, materials, patterns and sizes and upon request.
Art.no
60305-25
60310-25
60315-25
Galvanized
Painted
Corten
Material
Kristinehamn housing in steel.
Integrated downlight luminaire in stainless steel.
Light opening clear protected glass.
Installation
Wire. The catenary wire should be stainless steel and the holders can manage a thickness up to 10 mm wire.
Connection
Connection box suitable for trough wiring.
Lightsource
Integrated LED-module.
20W, 2000lm.
CCT 3000K (4000K on request)
CRI 90
IP Rating
65
